輸(shu)入(ru)

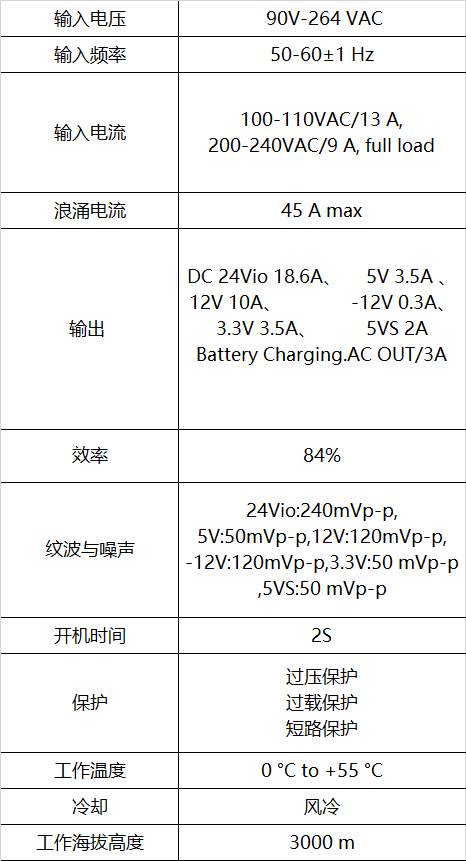

輸入電壓              ·90V-264 VAC

輸入(ru)頻率          ;    · 50-60±1 Hz

輸(shu)入電流(liu)              · 100-110VAC/13 A, 200-240VAC/9 A, full load

浪涌電(dian)流(liu)              ·45 Amax

輸(shu)入保護              · Internal T15.0 A/250 V fuse in line and neutral

輸出(chu)

輸出 ;                ·DC 24Vio 18.6A、5V3.5A、12V 10A、-12V0.3A、3.3V3.5A、5VS2A

                     ·  Battery Charging.AC OUT/3A

初始設置精度         ·24Vio±1%,Other ±5%

啟(qi)動延遲             · 2S  typical

啟動上(shang)升時(shi)間   ;      · 0.15S max

常(chang)規

功效                   . Up to 84%

隔離  ;                · 3000 VAC Input to Output

. 2000 VAC Input to Ground

MTBF                 · 20000 Hrs or more  at50°C.

環(huan)境

工作環境             ·0 °Cto +55 °C

冷(leng)卻                · FAN cooled

工作濕度             ·20% to 85% RH

儲存(cun)溫度             ·-10 °Cto +60 °C

工作高(gao)度             ·3000 m

振動                ·0.5G, 5 Hz to 150Hz, 3 axes
